Impact Tool
IT8200
Units
Inches
Assembly Tool — Used to replace employee (assembler) using hand or fist to pound.

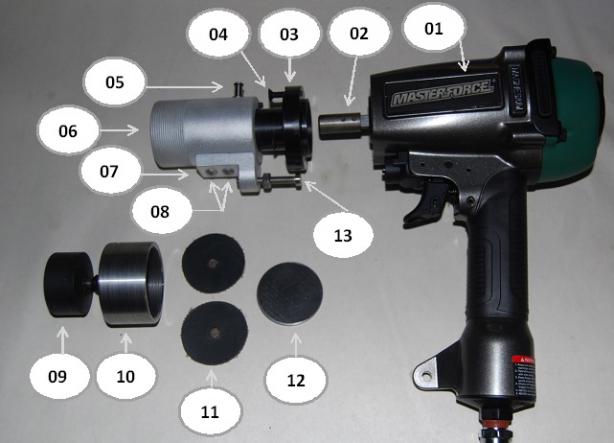

Parts Diagram
| Part Number | Part Name |
|---|---|
| IT8201 | Master Force Roofing Nailer (208-4011) |
| IT8202 | Impact Food - with (2) 6-32" x 1/8" Socket Set Screws |
| IT8203 | Main Body - Impact Food Guide |
| IT8204 | Assembly Screws (4 required) 5mm x 0.8 x 25mm Socket Flat Head |
| IT8205 | Alignment Guide Pin 1/4" x 3/4" Pull Dowel with 8-32 threads |
| IT8206 | Slide Body |
| IT8207 | Trigger Safety Bracket |
| IT8208 | Brack Mounting Screws (2 required) 10-32 x 1/2" Socket Button Head |
| IT8209 | Rubber Pad / Bumper |
| IT8210 | Bumper Holder Lock Nut |
| IT8211 | Rubber Dampening Washers (2 required) |
| IT8212 | Steel Striking Plate |
| IT8213 | Trigger Safety Adjusting Screw |
